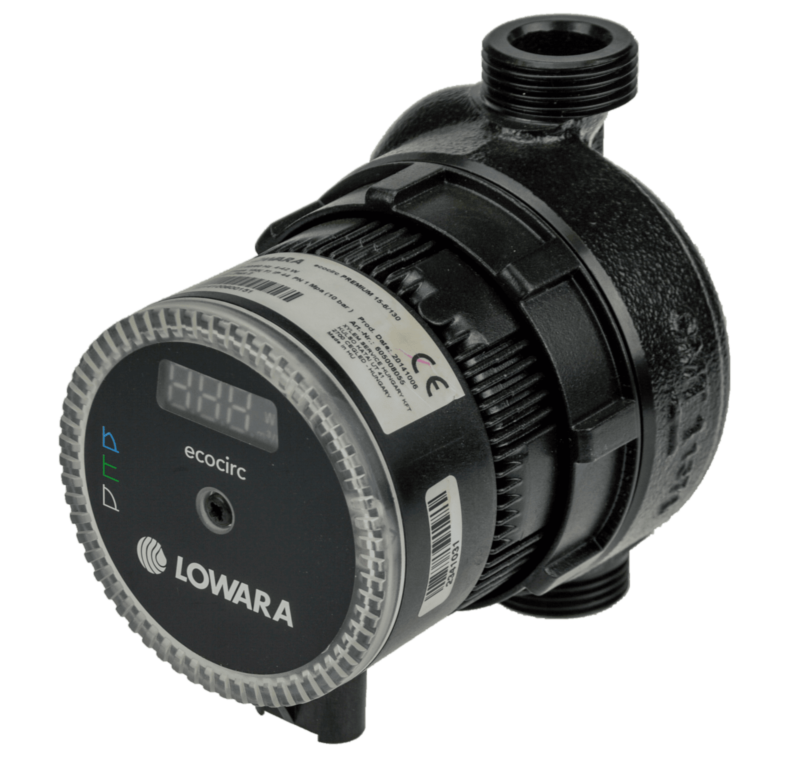

Swift Base Template V2.0 IMPORTANT: This is just a temporary template. Once the items have been pushed to classifieds board via Neto the actual template theme will be applied automically within 2hours. Please do not edit or remove any of our tags ////////////////////////////// --> Xylem Lowara ecocirc PREMIUM 15-6/130 hot water circulation pump with display. The display shows in turn: Power in Watts, Head pressure, and flow rate which assist in correctly setting the pump to the application to maximise efficiency and performance. 3 standard modes: Constant Speed - Speed remains constant independant of flow - dial knob 1-7 (this would be the most common setting for heat exhanger applications on pools and spas) Proportional Pressure - Pump automatically decreases speed for low flow/increases for higher flow Constant Pressure - Head pressure can be adjusted with the dial knob to maintain constant pressure independant of flow Automatic Air Purge - Purge trapped air from the pump.
Standby - When the pump is not needed. The 7 position dial is used to adjust flow to the correct level to ensure that the temperature differential between inlet and return from the heat exchanger / heat source are correct for maximizing performance. Max head - 5.7m Max flow - 3200 litres per hour / 53 litres per minute Max system pressure - 10 bar Temp range of pumped fluid -10 degrees C to 110 degrees C. (must not freeze. Fluid temp must always be higher than ambient temp) Permitted pumped fluid - Water or water/glycol mix.
Installation - pump must be installed with motor horizontal, or with motor vertical AND pump at the top. Plumbing connection - Male Thread - 1" BSP (no unions/fittings are included) 200-240v, 50/60Hz, 4-42w IP44 NB - this is a hot water circulator only - it is not for use as a spa circulation pump alternative. Its for use on a closed system primary heat source from a boiler, gas heater, solar, etc Xylem Ecocirc Premium Pump with Digital Flow / Pressure / Watts Display/ Circulation pump $485.00 DESCRIPTION Xylem Lowara ecocirc PREMIUM 15-6/130 hot water circulation pump with display. The display shows in turn: Power in Watts, Head pressure, and flow rate which assist in correctly setting the pump to the application to maximise efficiency and performance. 3 standard modes: Constant Speed - Speed remains constant independant of flow - dial knob 1-7 (this would be the most common setting for heat exhanger applications on pools and spas) Proportional Pressure - Pump automatically decreases speed for low flow/increases for higher flow Constant Pressure - Head pressure can be adjusted with the dial knob to maintain constant pressure independant of flow Automatic Air Purge - Purge trapped air from the pump.
Standby - When the pump is not needed. The 7 position dial is used to adjust flow to the correct level to ensure that the temperature differential between inlet and return from the heat exchanger / heat source are correct for maximizing performance. Max head - 5.7m Max flow - 3200 litres per hour / 53 litres per minute Max system pressure - 10 bar Temp range of pumped fluid -10 degrees C to 110 degrees C. (must not freeze. Fluid temp must always be higher than ambient temp) Permitted pumped fluid - Water or water/glycol mix.
Installation - pump must be installed with motor horizontal, or with motor vertical AND pump at the top. Plumbing connection - Male Thread - 1" BSP (no unions/fittings are included) 200-240v, 50/60Hz, 4-42w IP44 NB - this is a hot water circulator only - it is not for use as a spa circulation pump alternative. Its for use on a closed system primary heat source from a boiler, gas heater, solar, etc OTHER ITEMS YOU MAY LIKE Data updates only when live in classifieds board
