Spa Heater Element Hot Tub Heating Coil 5.0 Kw Side Terminal 10.7" 5000 Watts

5000 watt 5kw Spa Heater Element SIDE Terminals Style, Flo-Thru Hot Tub Heating Coil 5.0kw 240/120v, new side terminal Flo-Thru heater element, Incoloy 800 sheath, Stainless bulkhead fittings, large sealing o-rings, bulkheads are epoxy sealed on the backside too. Rated 240 volts 5.0kw AND 120 volts 1.25kw Heater housing gaskets (2) included. Not for Balboa M-7. Certified, guaranteed good resistance and thorough ground fault tested, prior to shipping. Over 31 electrical tests performed.

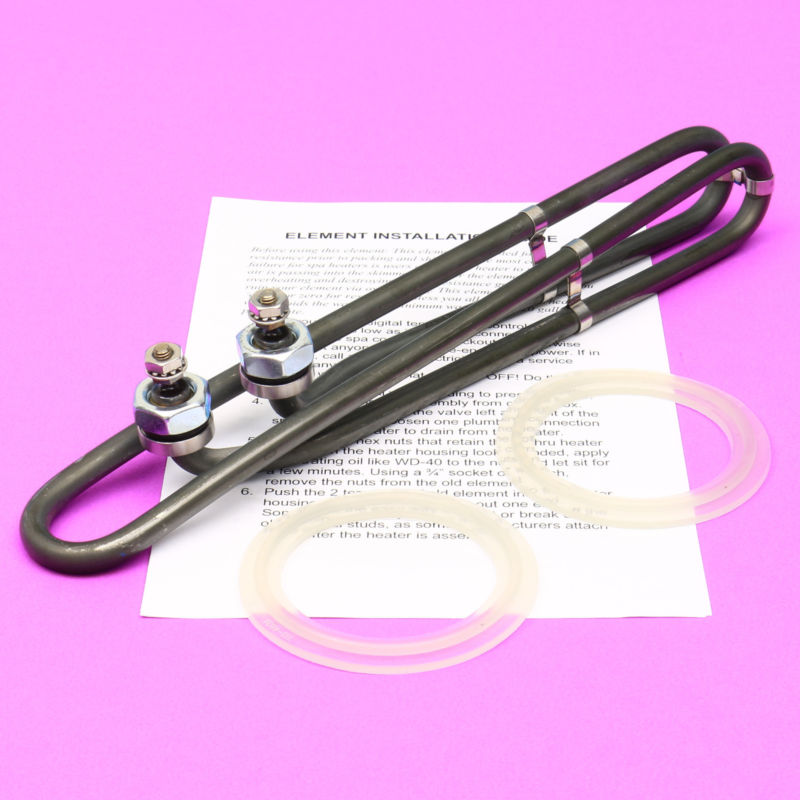

Includes 2 new heater housing gaskets, standard size for flanged flo-thru heaters, in translucent Santoprene elastomer. From Spa Pumps And More. Includes installation startup instructions (VERY important). More info at Spa Pumps And More Can be run on 240v as 5.0 kw (5000 watts) or on 120v as 1.25kw (1250 watts), fits many flo-thru heaters requiring side terminals, Gecko, Acura, SmartTouch controls as well as Morgan, Brett, and many others. This is a great element, a little lower in wattage than a 5.5kW and a little longer in length so it is a bit more rugged than a typical 5.5kW element.

DOES NOT FIT BALBOA M-7 PLEASE NOTE, IT IS TOO LONG. This is a heavy duty element, 10-5/8 inches long and is longer than the type needed for Balboa dual sensor heaters. Again, this 5kW element is NOT for Balboa M-7 heaters. Includes an installation guide with tips on proper heating element startup. Sized for 2.25" diameter flo-thru heater housings with 1-1/4" terminal spacing, with 1/2" bulkhead holes in housing, these are all very common, standard dimensions.

Overall length of this element is approximately 10.63". American made and ships from the U.S. Not from china. High quality. Not for housings smaller than 2.25" outside diameter, not for terminal spacing other than 1-1/4", not for hole size other than 1/2" terminal holes in housing, and not for replacing elements with centered terminals, please note.

If you have a need for some other style or size, message us with those details please. For a proper fit you need your heater housing to conform to the details listed which again are: Stainless Steel Housing outside diameter must be 2.25" (2-1/4 inch) Housing hole size for terminals must be 1/2 inch. Housing hole spacing must be 1-1/4 inch center to center. Housing must require an element with terminals offset to one side. Housing must require an overall element length of approximately 10-5/8 inch.

Ships via ground shipping. Thanks for looking! Questions, message us please, we are here to help :)
