Spa Control Hot Tub Heater Epack Controller Backlit Keypad Acc 4kw SMTD1500

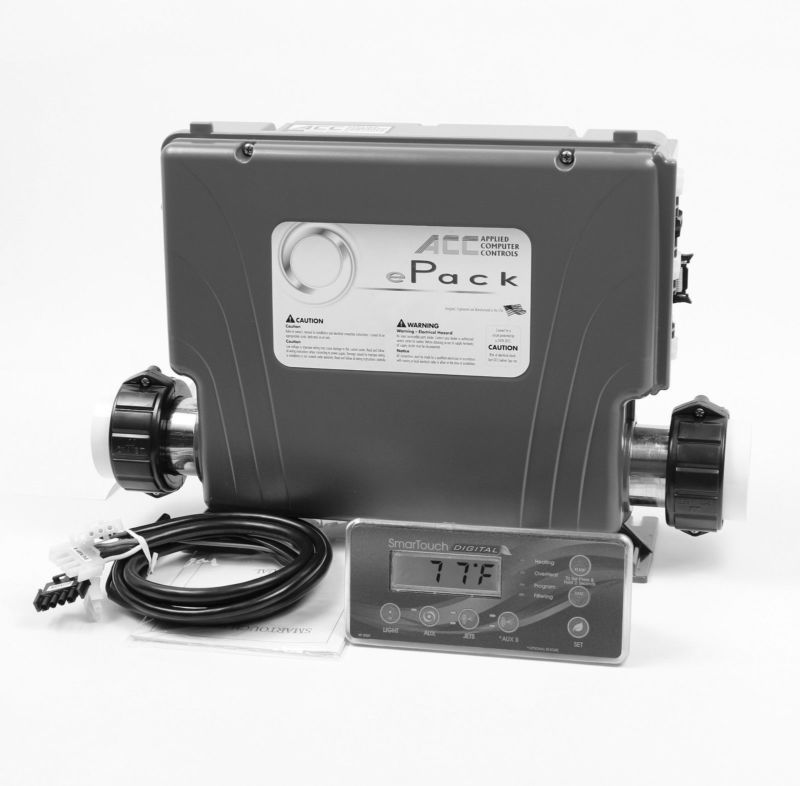

NEW hot tub controller, with electric high flow heater, by Applied Computer Controls, ACC model 'ePack' SMTD1500, complete, with set of power cords (pigtails) for pump, air blower, light, and ozonator, for standard 4-wire 230 volt incoming power, or, for 115 volt, it is convertible for voltages, 15" stainless steel high flow heater, 2" pipe size couplings, standard threaded split nuts 4.0kw heater, see photos for dimensions. Temperature probes are built in to heater, so no external mess with extra wires, probes in the tub, etc. Full Factory Warranty from the manufacturer, ACC, great product, reliable, easy to install. We have sold a ton of these over the past 15 years, probably the best 4000 watt heater and control combo available anywhere. Main control box is 12"Tx15"Wx5"D approximately.

Outbound Ground Shipping fees are included to lower 48 states! Includes the 3.25x7.25" large BACKLIT topside, which requires cutout hole of 2.2x6.2" hole. The ribbon cable from topside to control box is 5ft long. Note: Control box is now black in color, not blue. For repairing your spa, better and less costly than replacing parts on an old control, fits for most any spa or hot tub except for maybe some of the tiny 1 person tubs.

ACC factory warranty. New in box with manual, warranty, cords (pigtails), a complete unit. Nice big clear display. Not refurbished, but all new! The ePack will run one main 2-speed pump.

And an air blower on-off, OR, any other device on-off, for example a secondary single speed pump. And a 12 volt light, and it has output to an non-switched auxiliary device such as an ozonator, and of course it powers and controls the high flow heater included. Cord to main 2-speed pump is 48", the cords to light, ozonator, and air blower are short pigtails meant to splice onto your existing cords using wire nuts. Factory default settings are: Incoming power 230v 4-wire (can be 115v) High Flow Heater 230v (can be 115v) Main 2-speed pump 115v (can be 230v) Air Blower 115v (can be 230v) (or can be the on-off for a second pump) Ozonator 115v (can be 230v) Light 12 volts only If you need to control more than this, look at the Model 2000, the SMTD2000 control we list here. Note: intended use is for mounting under the redwood skirt of a typical portable spa, not out in the rain, snow, etc.

This is a high flow heater and control, 20 GPM minimum, for 2" or 1-1/2" PVC pipe size. It is NOT for tiny 3/4" circ pumps, if you need a low flow circ pump system, please message us. Warranties: all warranties are from the manufacturers who made the goods, not from the distributors, dealers, or resellers. Heater warranties do not cover running with air in the system (dry-fire) and burning a heating element, as this is not a defect. Pump warranties do not protect against seals being scratched by debris and leaking.

Warranties do not cover freight costs. Standard stuff, but just fyi, so you are aware. Shipping is included to US street addresses in lower 48 states, no P.O. Boxes, sorry. Please, ask before you buy if you have a question!

Thanks for looking! Goes out after payment received. Returns policy, please read.
