Spa Control Hot Tub Heater Controller Pack SMTD1000 Big Keypad Acc 5.5kW New

Spa Control Hot Tub Heater Controller Pack SMTD1000 Big Topside NEW 115/230v ACC Hot Tub Spa Control & Heater, SmarTouch Digital Controller NEW in box, includes owners manual, warranty card, warranty from manufacturer, ACC, Applied Computer Controls, model SMTD1000. High Flow 15" Heater, Large 3.25x7.25 Digital Topside Display/Keypad Shipping fee to lower 48 states is included! -This Smartouch Digital Control comes with 15" high flow 2" heater, Large 3.25x7.25" Topside display/keypad, power cords, and is a complete unit to replace your old spa control and heater. Drops into 2.5x6.5" cutout in your spa. -Runs a main 2 speed spa pump, and an air blower, and spa light, and has an output for ozonator or ionizer or any other non-switched device.

Intended use is to be mounted under the redwood skirt of a typical portable spa, not outside in the rain, snow, etc. The air blower circuit could be used to switch on-off a single speed secondary pump, per the manufacturer Applied Computer Controls. Runs on 20 GPM minimum, 2" or 1-1/2" PVC pipe size. This is NOT a circ pump system for tiny 24/7 3/4" pumps. This is for conventional 2-speed pump and is a high flow heater and control system.

Message us if you need a tiny circ pump controller, along with all your specs and details. This control above is NOT for low flow circ systems. -Comes with a new power cord for your main 2-speed pump, with quick disconnect plug to the control. You also get quick disconnect plugs and short 'pigtail' cords for the air blower, spa light, and one accessory device, like an ozonator. These are short cords meant to splice to your existing light cord, blower cord, and ozonator cord, using the supplied wire nuts.

-Includes 15 inch long 5500 watt (5.5kw) stainless steel heater, can be used on 115v or 230 volts, it's changeable voltage-wise. This is the common length of heater for 98% of hot tubs out there, comes with industry-standard black plastic split nuts with common buttress threads, so can couple right up to your existing plumbing if you have a 15" heater now. -the Smartouch SMTD 1000 can run off your 4-wire 230 volt supply voltage or off of a 3-wire 115 volt household power. Also, the pump and blower voltages can be changed to either 115v or 230v. On a 115 volt source, the heater will be 1.4kw or 1375 watts.

From the factory the SMTD1000 is set for 230v incoming power, 230v to the heater, and 115v to the pump, air blower (or second pump), and the ozonator, and 12 volts to the light, which is industry-standard. You can ask us and we can change voltages for you and test prior to shipping. Or, you can change the voltages yourself, it is easy. Can be mounted in any direction or position, even upside down, and the water can flow either direction through the heater. Can be fitted to 1-1/2" or 2" PVC pipe size systems.

This NEW Applied Computer Controls (ACC) control is not a 'blem' or 'second', not remanufactured, NOT reconditioned, it is NEW and carries the manufacturers' warranty against defects, verifieable thru ACC directly, please note. It is guaranteed to be covered under factory warranty, handled and administered directly by ACC if an issue arises. All warranty is done thru the factory not thru any middlemen, please note. Control is intended for use under the redwood skirt of a portable spa, not outside in the rain please note. -this control is for 4-wire 230v or for 115v.

IF you need a control for 3-wire 230v, an all 230v system, we can supply it, takes an extra day or so, message us and we'll respond with price and leadtime. If you order from this listing you WILL be shipped a 4-wire 230v system, Neutral, Ground, L1, L2. So message us if you want 3-wire, please. -User's Manual shows how to program changes into the control, but it is factory programmed, and tested by ACC, and ready to go as is. Nice unit, replaces most any existing spa control system, and is less costly than buying a new motherboard and topside in most cases.

ACC Factory Warranty. Control box stands 14-9/16" tall, and 15-3/8" wide, 7" deep, heater is 15" flange to flange. Designed, built and tested in the U.S. By ACC, a rugged, proven, spa control, good tech support, good parts availability, made in California. Not refurbished, rebuilt, demo, all is brand new in factory packaging, warranted and backed by Applied Computer Controls.

ACC has been building digital hot tub controls over 30 years. This goes via ground shipping, to your street address, after receipt of payment. Shipping shown is to LOWER 48 STATES ONLY. Questions? Please ask before you buy. Payment is due at time of purchase please note.

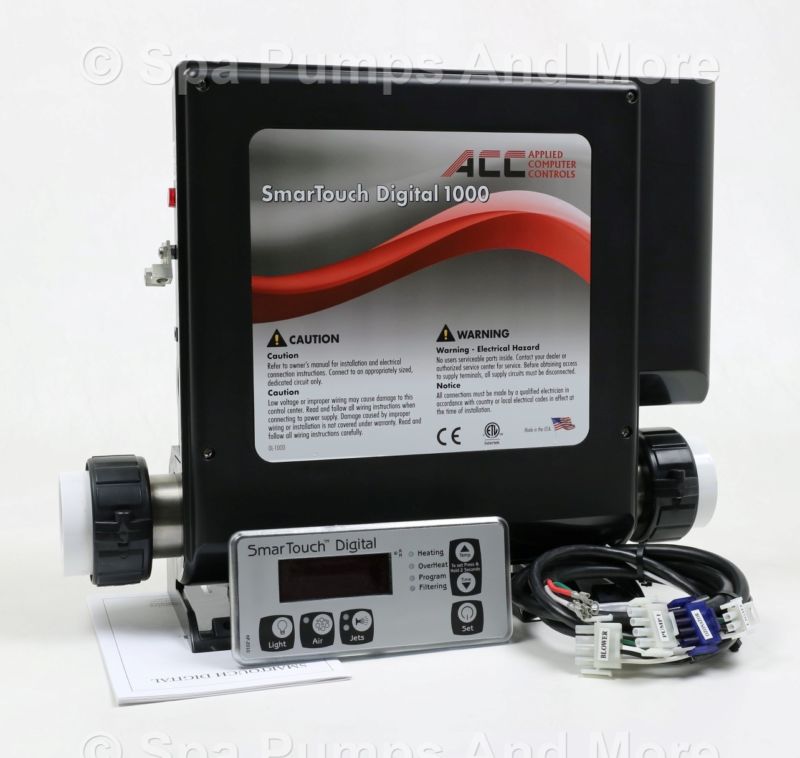

Message us anytime for tech support, questions, or just general help, or we're happy to call you if you want to chat :) Package includes: Smartouch Digital Control by ACC model SMTD1000 15" stainless steel heater with standard threaded couplings Large digital display keypad (topside) 3.25x7.25" with 57" long cable. (Extension cords available at extra cost, message us BEFORE you buy please. Buy this listing and you will be shipped a 5ft cable please note). Pump 4 wire power cord with quick disconnect AMP plug and motor connectors. 14/4 wire size.

Air Blower power cord, a short 'pigtail' with quick disconnect AMP plug, 18/3 wire size, to splice to existing blower cord. Ozonator cord, a short pigtail with quick disconnect AMP plug, 18 gauge wire. Light pigtail with quick disconnect AMP plug, 18 ga wire ACC warranty card ACC User's Manual Manual and Programming Guide can be viewed and printed on the ACC-Spas website.
