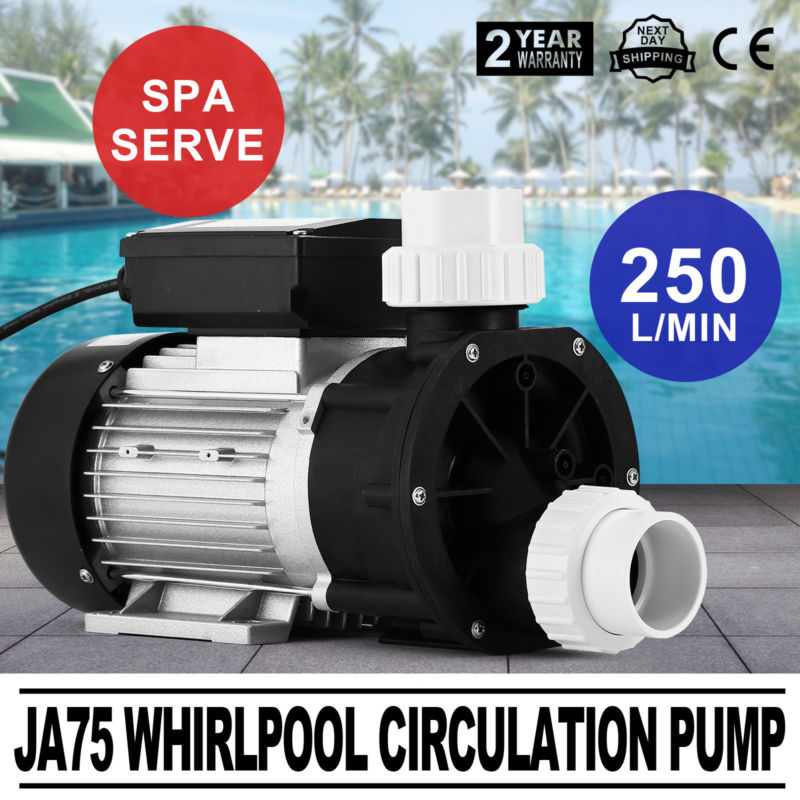

Lx JA75 Pump 0.75 Hp|Hot Tub|Spa|Whirlpool Bath|Water Circulation Pump| Top

HELPFUL LINKS Add Favorite Sellers Sign up to Newsletters View Feedback Ask seller a querstion Visit seller's classifieds board Shop About Seller Page PAYMENT LX JA75 0.75HP Spa Pool Circulation Pump Hot Tub Bathtub Water Circulation Pump WATCH THIS ITEM EMAIL A FRIEND Product Description This LX whirlpool pumps are now commonplace on hot tubs imported from all around the world. It is fitted to brands such as MAAX, Cascade, Trinity, Monalisa and AMC Winer along with many other newer spa brands appearing in the European market. A wide range of models across the range means you can often replace more expensive pump brands with these great alternatives. They are often used as circulation pumps on hot tubs and swim spas but can also be found fitted to many whirlpool baths as well. The JA75 is a self drain centre discharge pump.

It would be most commonly used as a circulation pump on hot tubs and swim spas but can also be found fitted to many whirlpool baths as well. The liquids part is made of high reinforce engineering plastic; Applied mechanical seal type ensure watertight in long-time continuous operation. The liquid will be drained once motor is off. Working conditions: Medium temperature: 5-500℃ Environmental temperature: 5~400℃ Max.working pressure: 0.3MPa Application: 1. It's suitable for hydro massage tube or SPA system and circulation or filter of swimming pool system. 2.

It's used to transmit and cycle sea-water for fish pond water which is a preferred sea-water pump. 3. Weak corrosive liquid (weak acid and weak) without solid granules. Liquid temperature: +5-60℃ 4. It's suitable for circulating water equipment that use for workshop's cooling-down. Application example: 1.6-8 nozzles for single bathtub: JA75/JA120 2.8-12 nozzles for double bathtub: JA150/JA200 3.

Circulation system for fishery pool: JA35/JA50/JA75 4. Integration swimming pool's filter equipment. JA200 Type selection: 1. The number of nozzle/request flow/pressure etc. 2. Applied region's voltage and frequency (220V/50Hz is available) 3.

Applied region's request for safety certificate. 4. Request for fitting size(48.5mm, 50mm is available) 5. Type of plug. (no plug or Europe plug, UL plug is available) Notice: LX pumps are no longer fitted with air switches. Air switches or pneumatic control boxes can be fitted by a qualified electrician to these pumps.

Feature Electric pump over-current components using high-strength engineering plastics, with high-quality wear-resistant mechanical seal 63, 71 and 80 frame, the frame with machine feet conjoined strong and reliable Pump apply forlow noise standard motor. Single-phase with thermal protector from TI,USA Motoris with high temperature bearings, long operating life with reliability and durability Complete separation of water and the axis, safe and reliable Optional pneumatic switch, to ensure ease of use, security Insulation class F, Protection IPX5 The pump obtained the certification of CE,TUV, SAA Specifications Type: JA75 Circulation Pump Color: Black Voltage: 220v/50hz Amps: 3.2 Power: 0.55kw Nominal HP: 0.75hp RPM: 2900 Capacitor: 10uf Head - H max: 12m Flow - Q max: 250l/min Inner Diameter of Joint: 48.5-50mm Dimensions: 380x180x235mm Weight: 6kg Package Content 1 x JA75 Circulation Pump About Us Payment Returns Contact Us Warranty FAQ Shipping Welcome to our classifieds board store. As a leading and emerging company in manufactory and exporting business, we are specialized in Business and Industrial Products, Sporting Goods, Pet Products, Home and Garden products for more than 10 years. We believe that it is our vision and mission to provide innovative products with best service and competitive price to satisfy you. Our goal is to make sure that you can find exactly what you are looking for and make it easy for you to place your orders.
