DH1 Chinese Circulation Hot Tub Pump 1HP Waterway Chinese Spa Whirlpool

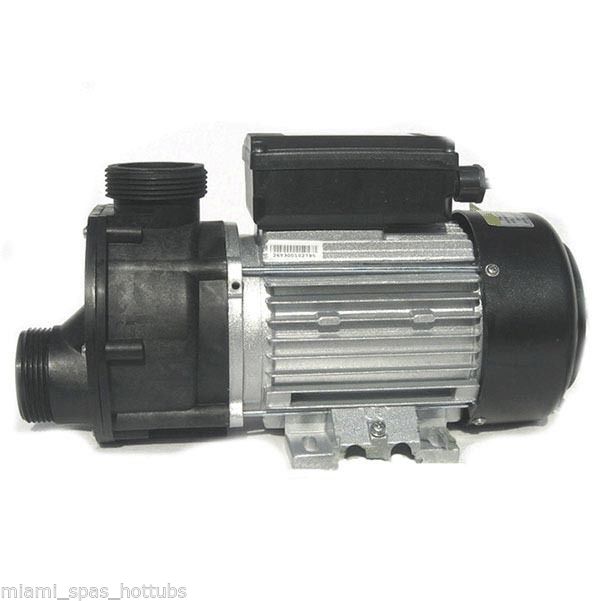

Superior Spas (Behind NLT Training), Station Road Brimington, Chesterfield Derbyshire S43 1JUMon-Fri: 9-5 Sat: 9-2 0phone About Us Delivery Returns Contact Us LX Spa Pump DH1.0 - 1 Speed 1.00Hp LX Whirlpool pumps are now common place on hot tubs imported from all around the world. Fitted to brands such as MAAX, Cascade, Trinity, Monalisa and AMC Winer along with many other newer spa brands appearing in the European market. A wide range of models across the range means you can often replace more expensive pump brands with these great alternatives. The DH1.0 is a self drain centre discharge pump. It would be most commonly used as a circulation pump in a hot tub or as a whirlpool bath pump for medium to large sized tubs.

Note that LX pumps are no longer fitted with air switches. Air switches or pneumatic control boxes can be fitted by a qualified electrician to these pumps. Model InformationDimensions L x W x H375x180x250mmType24hr Circulation, Bath PumpModelDH SeriesNominal HP1.00HpMPNDH1.0FlowHEAD - H max10.5mFLOW - Q max340lpmMotor InformationVoltage / Frequency220-240V / 50HzAmp Draw3.8 APower - P10.75 kWRPM2900Capacitor Size(s)15 µfFrame Size48FCord / Plug Type3 Core AMPAir SwitchNoWet End InformationFrame Size48FConfigurationLow Suction, Center DischargeUnion Connection Ref1.50 InchConnection Diameter63mmThread TypeMale - ButtressImpeller Part No.B312-18(01)Impeller Diameter100mmImpeller Vane Gap9mmShaft Seal TypeType BSpare Parts AvailableNo NEXT DAY DELIVERY: FREE
